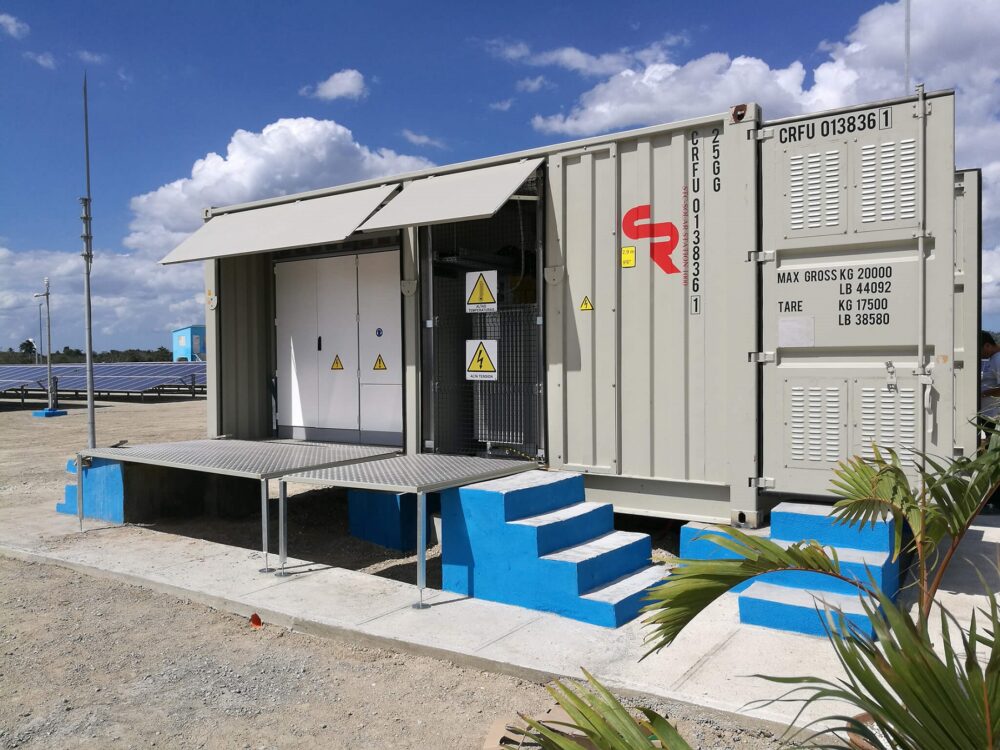

Our transformation cabin is a transportable compact shelter, suitable for secondary distribution grid with ring configuration and remotely controlled. The short assembly and construction phases in the factory allow a quick installation on site.
OIL TRANSFORMER – SKID SOLUTION
The skid solution is a prefabricated plug-in compact substation, designed to elevate energy from PV plants to elevating substations.
It is equipped with power distribution components:
- Medium voltage switchgear – up to 40.5 kV
- Oil-type transformer – up to 10000kVA
- Low voltage switchboard
- Automation system for the control and supervision
- Inverter, bus duct, auxiliary equipment
DRY-TYPE TRANSFORMER – KIOSK SOLUTION
The Kiosk solution is a prefabricated plug-in compact substation, equipped with power distribution components:
- Medium voltage switchgear – up to 40.5 kV
- Dry-type transformer – up to 5000kVA
- Low voltage switchboard
- Automation system for the control and supervision
- Inverter, bus duct, auxiliary equipment
TECHNICAL FEATURES
- It can be supplied as a centralized inverter or as a string inverter, for large photovoltaic plants.
- Transportation methods: It can be lifted from lifting brackets and placed by a crane on the concrete foundation.
- Alternatively, it can be dragged by a tractor. Dragging is done by attaching the steel holding lines with hooks to the ends of the cabin, where the anchoring points are.
ADVANTAGES
- Plug & play
- Floating PV plant
- Customized internal configurations
- Compact and small size structure
- Suitable for road and sea transportation
- Short installation times
- Resistant to elements and hostile environmental conditions
APPLICATIONS
- Utility on primary and secondary distribution grids
- Photovoltaic plants
- Battery storage
- Wind power stations
- Suitable for floating applications
